Note: Prices are valid as of January 2026 and may change as per the present date. All prices are without electricals. Please confirm the current price with us before ordering.

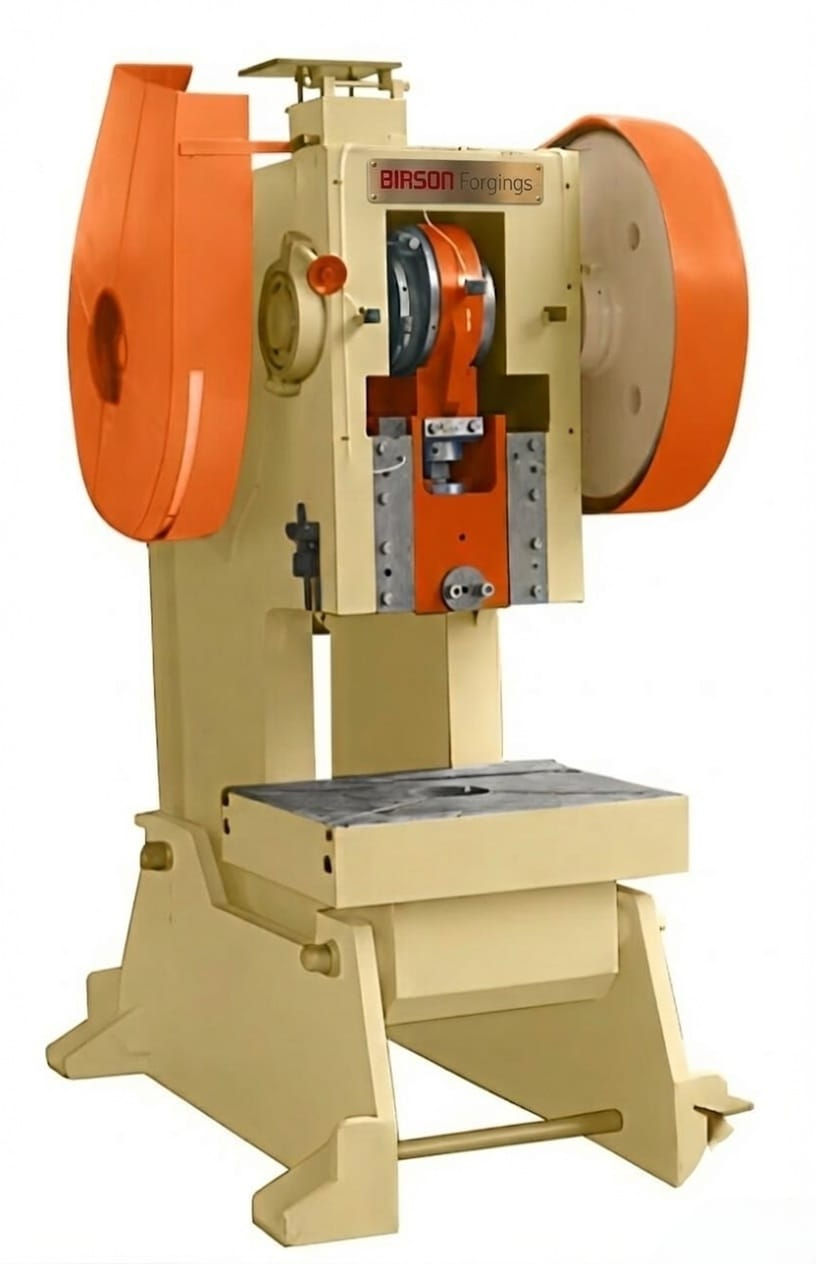

The 100 ton C type power press machine price at Birson Forgings starts at ₹7,76,000 for model C 100 S, ex-works Ludhiana, without electricals (GST, freight and installation extra). Its open-front C frame gives three-side access to the die, which suits hand feeding, strip feeding, piercing, trimming and bending.

What a 100 ton power press can cut

We advise running a press at 70 to 80 percent of its rated tonnage. At 80 percent, the C 100 S delivers 80 ton. In mild steel of 3 mm, that is enough to blank a cut length of about 760 mm, or a round blank of about 241 mm diameter.

Mild steel thickness

Max cut length

Round blank diameter

2 mm

1140 mm

362 mm

3 mm

760 mm

241 mm

4 mm

570 mm

181 mm

5 mm

455 mm

144 mm

6 mm

380 mm

120 mm

8 mm

285 mm

90 mm

Worked out with shear strength 35 kgf/mm² (about 345 N/mm²) for mild steel, at 80 percent of 100 ton. This checks cutting force only. Drawing and forming also depend on stroke and flywheel energy, so send your part drawing and we will confirm. You can also use the press tonnage calculator.

100 ton C type vs 100 ton H type

At the same 100 ton, the 100 ton H type power press (model 100 S) starts at ₹6,55,000. The C 100 S has a 39.4 x 25.6 in bed against 26.0 x 24.0 in, so its bed is larger, and it weighs 5,900 kg against 4,200 kg. Choose the C type when the operator needs open access to the die.

Neighbouring sizes

If 100 ton is not quite right: one size down, the 80 ton C type has a 37.4 x 24.4 in bed and 10 HP motor, from ₹6,22,000; one size up, the 120 ton C type has a 42.1 x 27.6 in bed and 10 HP motor, from ₹9,30,000.

C 100 S technical specifications

Model

C 100 S (S: standard build)

Capacity

100 ton

Bed size

39.4 x 25.6 in (1001 x 650 mm)

Stroke

5.0 in (127 mm)

Shut height

15.0 in (381 mm)

Daylight (shut height plus stroke)

20.0 in (508 mm)

Shank hole

50 mm

Crankshaft diameter

5.5 in (140 mm)

Flywheel outside diameter

40.0 in (1016 mm)

Main gear pitch diameter

38.0 in (965 mm)

Motor

10 HP

Machine weight

5,900 kg, without die or feeder

Starting price

₹7,76,000 ex-works Ludhiana, without electricals (January 2026)

Tolerances: bed and stroke plus or minus 0.08 in, weight plus or minus 5%.

Price, delivery and what is included

  • Included: guards, centralised lubrication with hand pump, bolster plate, tools, trial test before dispatch, commissioning by a Birson engineer

  • Costs extra: electricals, pneumatic clutch and brake (rolling key clutch is standard), two-hand control, light curtain, die guard, hydraulic overload protector, GST, freight

  • Delivery 2 to 4 weeks, 1 year warranty. You need a concrete foundation and 3 phase 415 V supply.

To buy: tap Buy through WhatsApp, call +91 98147 15935 or email info@birsonforgings.com with your part drawing and material thickness.

All Birson mechanical power press models

Starting prices, without electricals, valid as of January 2026.

Full ranges: C frame power presses and H frame power presses.
