Note: Prices are valid as of January 2026 and may change as per the present date. All prices are without electricals. Please confirm the current price with us before ordering.

The 120 ton H type power press machine price at Birson Forgings starts at ₹7,76,000 for model 120 SH, ex-works Ludhiana, without electricals (GST, freight and installation extra). Its closed H frame of welded, stress-relieved steel plate keeps the ram square under off-centre loads, which suits blanking, drawing and progressive dies.

What a 120 ton power press can cut

We advise running a press at 70 to 80 percent of its rated tonnage. At 80 percent, the 120 SH delivers 96 ton. In mild steel of 3 mm, that is enough to blank a cut length of about 910 mm, or a round blank of about 289 mm diameter.

Mild steel thickness

Max cut length

Round blank diameter

2 mm

1370 mm

436 mm

3 mm

910 mm

289 mm

4 mm

685 mm

218 mm

5 mm

545 mm

173 mm

6 mm

455 mm

144 mm

8 mm

340 mm

108 mm

Worked out with shear strength 35 kgf/mm² (about 345 N/mm²) for mild steel, at 80 percent of 120 ton. This checks cutting force only. Drawing and forming also depend on stroke and flywheel energy, so send your part drawing and we will confirm. You can also use the press tonnage calculator.

120 ton H type vs 120 ton C type

At the same 120 ton, the 120 ton C type power press (model C 120 SH) starts at ₹9,30,000. The 120 SH has a 26.0 x 26.0 in bed against 42.1 x 27.6 in, so its bed is smaller, and it weighs 5,000 kg against 7,000 kg. Choose the H type for accuracy under heavy or off-centre loads.

Neighbouring sizes

If 120 ton is not quite right: one size down, the 100 ton H type has a 26.0 x 24.0 in bed and 10 HP motor, from ₹6,55,000; one size up, the 150 ton H type has a 27.2 x 25.0 in bed and 15 HP motor, from ₹9,30,000.

120 SH technical specifications

Model

120 SH (SH: heavy-duty build for continuous production)

Capacity

120 ton

Bed size

26.0 x 26.0 in (660 x 660 mm)

Stroke

5.5 in (140 mm)

Shut height

17.3 in (439 mm)

Daylight (shut height plus stroke)

22.8 in (579 mm)

Shank hole

55 mm

Crankshaft diameter

7.0 in (178 mm)

Flywheel outside diameter

43.9 in (1115 mm)

Main gear pitch diameter

41.9 in (1064 mm)

Motor

10 HP

Machine weight

5,000 kg, without die or feeder

Starting price

₹7,76,000 ex-works Ludhiana, without electricals (January 2026)

Tolerances: bed and stroke plus or minus 0.08 in, weight plus or minus 5%.

Price, delivery and what is included

  • Included: guards, centralised lubrication with hand pump, bolster plate, tools, trial test before dispatch, commissioning by a Birson engineer

  • Costs extra: electricals, pneumatic clutch and brake (rolling key clutch is standard), two-hand control, light curtain, die guard, hydraulic overload protector, GST, freight

  • Delivery 2 to 4 weeks, 1 year warranty. You need a concrete foundation and 3 phase 415 V supply.

To buy: tap Buy through WhatsApp, call +91 98147 15935 or email info@birsonforgings.com with your part drawing and material thickness.

All Birson mechanical power press models

Starting prices, without electricals, valid as of January 2026.

Full ranges: C frame power presses and H frame power presses.

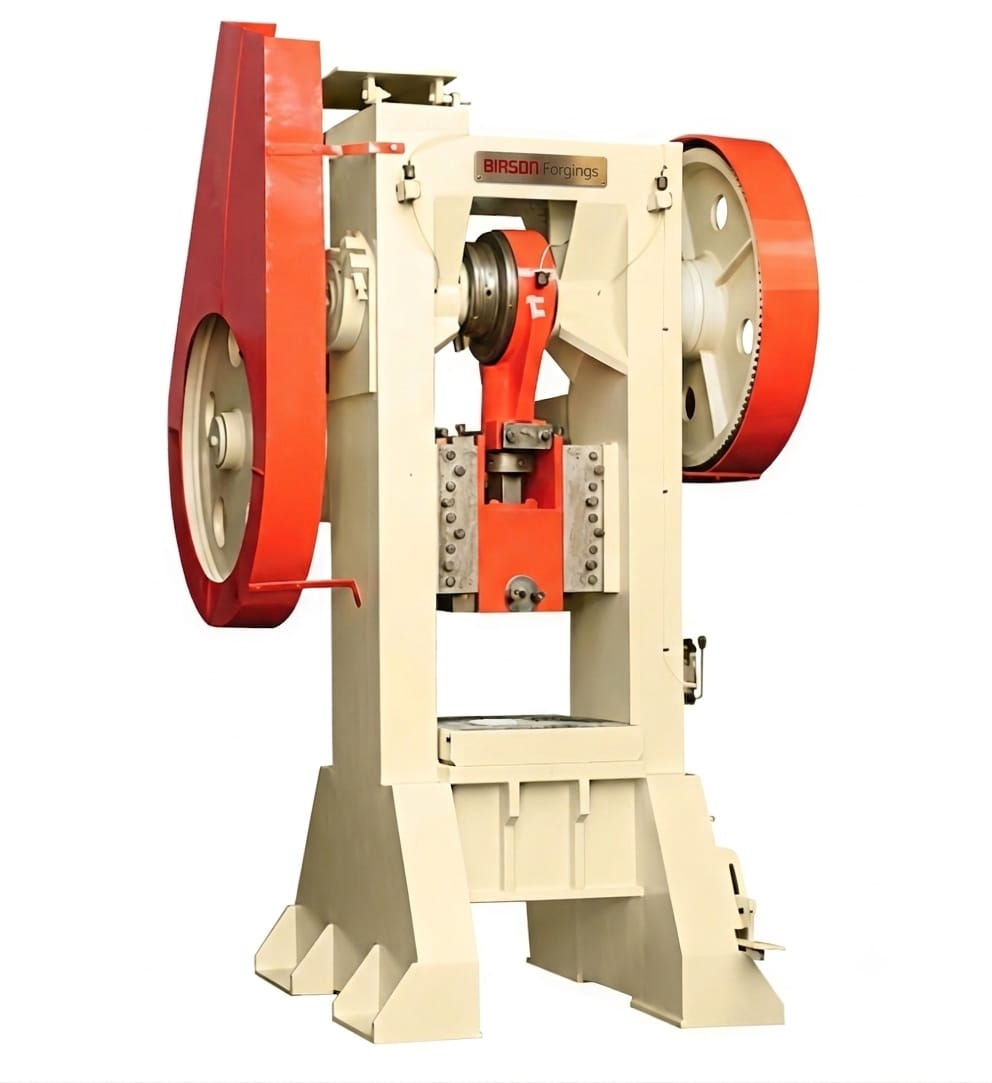

120 Ton H Type Power Press Machine (H Frame, Model 120 SH)

SKU: BF-120SH
₹776,000.00Price
